For conveying incinerated ash and woody biomass

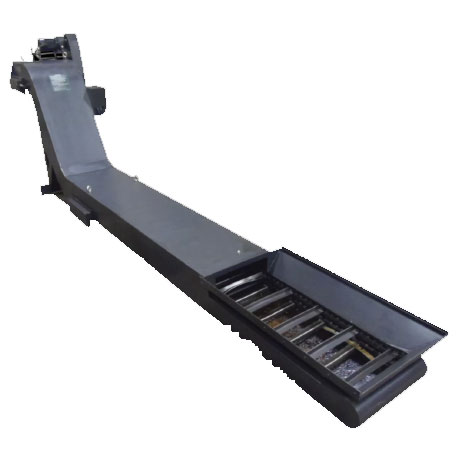

Tsubaki LFV Scraper Conveyor is a scraper conveyor that conveys relatively large-grained materials such as incinerated ash and woody biomass on a horizontal + inclined layout with one unit.

Features and Conveying Capacity -- LFV Scraper Conveyor

*Click the image of each structure to enlarge.

Has a tough casing structure.
Features a sealed structure.
A wide variety of scraper specifications to handle conveyed materials.

Conveying capacityModel numberScraper height
(mm)Conveying capacity (m3/ｈ)Conveyed item:
Incinerated ash
Speed:
5m/minConveyed item:
Woody biomass
Speed:
15m/minLFV4002003.070LFV6004.5100LFV8006.0140

Note 1: For incinerated ash, the above values show conveying capacity calculated at a repose angle of 45° on horizontal conveyance. For woody biomass, the conveying height is calculated as scraper height. The actual conveying capacity differs depending on the tilt angle of the conveyors or the nature of the conveyed materials.
Note 2: The capacities in this table are for when there is continuous and constant feeding.

Dimensions and Model Numbers

Model numberHead casingOutletHorizontal casingH1H2H3H4H5H6E1E2E3M1M2M3M4LFV4004661,3009301006404701,2005802003,000680830400LFV600740570780880600LFV8008406709801,080800Model numberInletLower curved casingTail casingFoundationJ1J2J3J4B1B2T1T2T3T4T5FLFV4003903901,890980950952800300638830822100LFV6005905901,022LFV8007907901,222

Points of caution

The LFV Scraper Conveyor may not be used depending on the lump size, the adhesive degree of conveyed materials, and the tilt angle. Contact a Tsubaki representative for more details.

Product Details

Scrapper Conveyor
