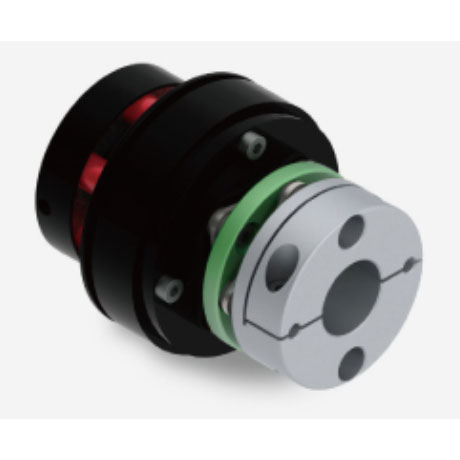

STL SeriesSafety Coupling for Torque Overload Protection (Coupling attached Type)

Product Overview
Dimensions / Performance / CAD
STL Series [Coupling attached Type] How to order▶ STL-F Series [Flange Type] How to order▶

STL – 2D (.dwg)
STL – 3D (.step)

General Set-screw Type

A.P. LOCK Type

Dimensions / PerformanceModelCADTorque
Range
(N·m)SpringSize (±0.3mm)ColorQ’tyDDCD1DNDLLL1OPQRXF1F2STL25-L

1.5 ~ 7BLUE3745425583095.61934.833.627.212.51.26.324.5STL25-M

4.5 ~ 20RED6STL25-H

9 ~ 25GREEN6STL55-L

7.5 ~ 27BLUE610480357040120.829.752.142.925.814.51.39.420.5STL55-M

13.5 ~ 41RED6STL55-H

21 ~ 55GREEN6STL150-L

20~50BLUE512388469055144.93069.849.12614.52.11020.5STL150-M

30~80RED5STL150-H

55~150GREEN10ModelCADMCMSMNMLMax.
rpm
(min-1)Moment
of Inertia
(kg·m2)Mass
(kg)Permissible MisalignmentSizeFastening
TorqueSizeFastening
TorqueSizeFastening
TorqueSizeFastening
TorqueAngular
(˚)Parallel
(mm)End-play
(mm)STL25-L

2-M582-M30.72-M41.74-M43.57007.1X10-41.20.60.1±0.5STL25-M

STL25-H

STL55-L

1-M8302-M41.72-M546-M43.55503.3X10-330.60.1±0.5STL55-M

STL55-H

STL150-L

1-M8302-M672-M676-M43.54008.3X10-34.810.2±0.6STL150-M

STL150-H

Standard Inner Diameter (ID)ModelStandard Inner Diameter (d1, d2) (mm)10111214151617181920212224252830323538404245STL25d1 Coupling sideGeneral●●●●●●●●●●●●●●d2 Torque Limiter sideGeneral Set-screw●●●●●A.P. Lock Type●●●STL55d1 Coupling sideGeneral●●●●●●●●●●●●●●d2 Torque Limiter sideGeneral Set-screw●●●●●●●●●●●A.P. Lock Type●●●●●●●STL150d1 Coupling sideGeneral●●●●●●●●●●●●●d2 Torque Limiter sideGeneral Set-screw●●●●●●●●●●●●●●A.P. Lock Type●●●●●●●●●●●●●

Tightening amount – Slip torque correlation chart

How to Order

① Disengagement Torque Set-upNo markUser’s own set-upTS(torque)Already set-up at a certain torque at the dispatch stage

② KeywayNo markNo KeywayK(b size)Keyway processed according to the indicated b size. (Keyway is not applicable on A.P. Lock type)

③ Clamping way of torque limiter sideNGeneral Set-screw TypePA.P. Lock Type

※ N type products (General set-screw on Torque limiter side) should be accompanied with key/keyway due to structural reasons. If the size of keyway is non-standard, please contact our customer service team.
(In case your device cannot have a key, please make sure you discuss with our customer service team before placing an order.)

※ Due to its structural conditions, STL series cannot be modified once it is processed.
