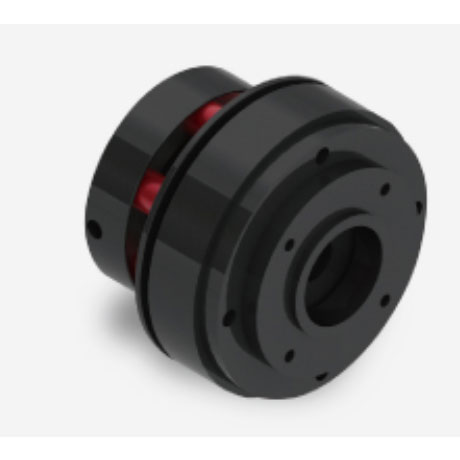

STL-F SeriesSafety Coupling for Torque Overload Protection (Flange Type)

Product Overview
Dimensions / Performance / CAD
STL Series [Coupling attached Type] How to order▶ STL-F Series [Flange Type] How to order▶

STL – 2D (.dwg)
STL – 3D (.step)

General Set-screw Type

A.P. LOCK Type

Dimensions / PerformanceModelCADTorque
Range
(N·m)SpringSize (±0.3mm)ColorQ’tyDDFDNDLLHOPQRXF2STL25F-L

1.5~7BLUE37430583064.824235.627.212.51.224.5STL25F-M

4.5~20RED6STL25F-H

9~25GREEN6STL55F-L

7.5~27BLUE610445704071.940342.92614.51.320.5STL55F-M

13.5-41RED6STL55F-H

21-55GREEN6STL150F-L

20~50BLUE512560905580.152450.12614.52.120.5STL150F-M

30~80RED5STL150F-H

55~150GREEN10ModelCADMFMSMNMLMax.
rpm
(min-1)Moment
of Inertia
(kg·m2)Mass
(kg)SizeP.C.DSizeFastening
TorqueSizeFastening
TorqueSizeFastening
TorqueSTL25F-L

4-M4 DP8402-M30.72-M41.74-M43.57006.4X10-41.1STL25F-M

STL25F-H

STL55F-L

6-M6 DP8602-M41.72-M546-M43.55502.1X10-32.4STL55F-M

STL55F-H

STL150F-L

6-M8 DP10752-M672-M676-M43.54007.2X10-33.9STL150F-M

STL150F-H

Standard Inner Diameter (ID)ModelStandard Inner Diameter (d1, d2) (mm)101112141516171819202122242528303235STL25FGeneral●●●●●A.P. Lock Type●●●STL55FGeneral●●●●●●●●●●●A.P. Lock Type●●●●●●●STL150FGeneral●●●●●●●●●●●●●●A.P. Lock Type●●●●●●●●●●●●●

Tightening amount – Slip torque correlation chart

How to Order

① Disengagement Torque Set-upNo markUser’s own set-upTS(torque)Already set-up at a certain torque at the dispatch stage

② KeywayNo markNo KeywayK(b size)Keyway processed according to the indicated b size. (Keyway is not applicable on A.P. Lock type)

③ Clamping way of torque limiter sideNGeneral Set-screw TypePA.P. Lock Type

※ N type products (General set-screw on Torque limiter side) should be accompanied with key/keyway due to structural reasons. If the size of keyway is non-standard, please contact our customer service team.
(In case your device cannot have a key, please make sure you discuss with our customer service team before placing an order.)

※ Due to its structural conditions, STL series cannot be modified once it is processed.

Product Details

STL-F Series
