Product Details

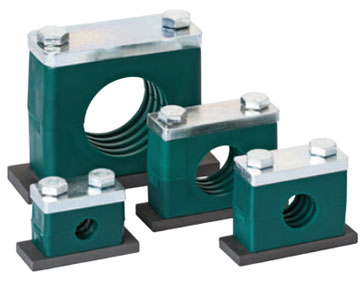

Hydraulic Pipe Clamps

0 Reviews(S)

₹0.00

LMC Clamps are LR Type Approved for the below designs. Hydraulic Pipe Clamps - DIN 3015 1,2,3 Metal Clamps - DIN 1597, 1596, 1593, 1592, 3567

Add To Cart

Description
Reviews

Hydraulic Clamps

CLAMP SERIES TYPE

SIZE RANGE

MATERIAL

Standard Series Clamps

STANDARD SERIES CLAMPS
(DIN 3015-1)

6 mm to 104 mm

Polypropylene, Polyamide, Aluminium

Heavy Series Clamps

HEAVY SERIES CLAMPS
(3015-2)

6 mm to 406.2 mm

Polypropylene, Polyamide, Aluminium

Twin Series Clamps

TWIN SERIES CLAMPS
(3015-3)

6 mm to 42 mm

Polypropylene, Polyamide

Rubber Insert Clamps

RUBBER INSERT CLAMPS

6 mm to 133 mm

Polyamide

Hydraulic Clamps

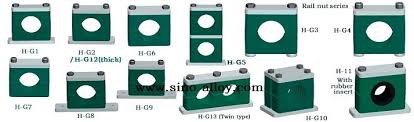

Clamp Body Types

LMC Hydraulic Tube Clamps are available in the below types which are specially designed for specific applications.

Hydraulic Tube Pipe Clamps Types - Pipes,Hoses, Rubber Inserts

Clamp Arrangements

LMC Hydraulic Tube Clamps are available in many different types of arrangement and some are shown below.

Small Bore Clamp Set - LMC Hydraulic Tube Clamps

Clamp Set with Weld Plate - LMC Hydraulic Tube Clamps

Clamp Set for Rail Mounting- LMC Hydraulic Tube Clamps

Clamp Set with Elongated Weld Plate - LMC Hydraulic Tube Clamps

Clamp Set with Mounting Rails - LMC Hydraulic Tube Clamps

Clamp Set with Stacking Components - LMC Hydraulic Tube Clamps

Clamp Components

LMC Manufactures Clamp components as spare parts. Some main components are shown below.

Angle Weld Plate - LMC Hydraulic Tube Clamps Components

Mounting Rail - LMC Hydraulic Tube Clamps Components

Heavy Series Rail Nut - LMC Hydraulic Tube Clamps Components

Group Weld Plate - LMC Hydraulic Tube Clamps Components

Standard Series Rail Nut - LMC Hydraulic Tube Clamps Components

Safety Locking Plate - LMC Hydraulic Tube Clamps Components

Stacking Bolt - LMC Hydraulic Tube Clamps Components

Safety Plate - LMC Hydraulic Tube Clamps Components

Clamp Body Material Types

LMC Manufactures Clamp bodies of different materials as shown below.

LMC Hydraulic Tube Pipe Clamps Material Types - Polypropylene, Thermoplastic Polyamide, Aluminium

Clamp Plate Types

LMC Manufactures Clamp Weld Plates of different materials as shown below.

LMC Hydraulic Tube Pipe Clamps weld Plate Types - Stainless Steel, Carbon Steel

Metal Clamps & U-Bolts

Approvals

LMC Clamps are LR Type Approved for the below designs.
Hydraulic Pipe Clamps - DIN 3015 1,2,3
Metal Clamps - DIN 1597, 1596, 1593, 1592, 3567

0 Reviews For Hydraulic Pipe Clamps
