This timing pulley product features a helical tooth profile design. During operation, the belt and pulley teeth engage progressively and continuously. This design reduces noise and minimizes wear. Additionally, it decreases vibrations, resulting in improved power transmission performance compared to other types of timing pulleys (trapezoidal, curvilinear, etc.).
This timing pulley product features a helical tooth profile design. During operation, the belt and pulley teeth engage progressively and continuously. This design reduces noise and minimizes wear. Additionally, it decreases vibrations, resulting in improved power transmission performance compared to other types of timing pulleys (trapezoidal, curvilinear, etc.).
EAGLE TIMING PULLEY - FeaturesThe design, optimized with a helical offset tooth profile, allows for continuous engagement
between the belt and pulley. This structure is designed to drastically reduce vibrations and
noise that may occur during operation, enabling quiet and smooth operation.

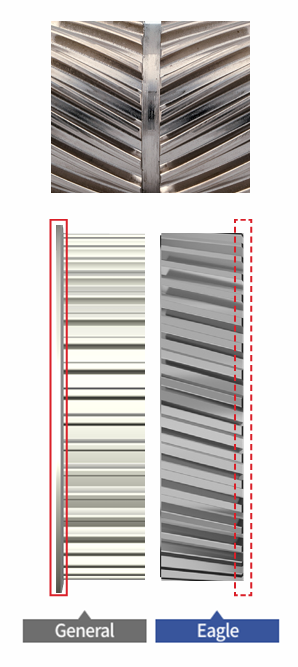

The helical offset design features a V-shaped tooth arrangement. This tooth arrangement
allows for self-alignment of the timing belt during operation, effectively preventing lateral
movement. As a result, flanges, which are essential in other types of timing pulleys, are no
longer necessary. This allows for a reduction in the pulley's width and weight, resulting in a
more compact and lightweight drive system overall.
The application of the helical tooth design ensures excellent performance even at high
rotational speeds. The continuous engagement between the belt and pulley maximizes
power transmission efficiency while minimizing friction and vibration, significantly
improving durability. This design reduces wear under high-speed operating conditions and
extends the system's lifespan, ultimately lowering maintenance costs over the long term.

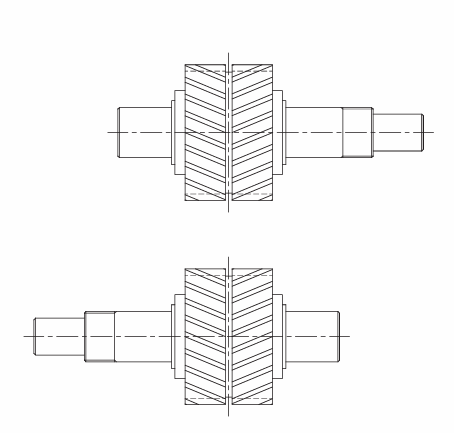

The helical offset design features a V-shaped arrangement, showing the direction. If the pulley has an asymmetrical shape, the drawing must specify the tooth direction.
- All 'EAGLE TIMING PULLEY' products are custom- manufactured according to customer specifications to suit various environments and requirements.
- Please be sure to discuss the specifications with us before placing an order.
- Please send the product information and drawings to our sales team for review, and we’ll provide further guidance.
