Hydraulic cylinders are an essential component of the hydraulic industry. Almost all applications use a hydraulic cylinder for converting incompressible hydraulic fluid energy to work. So, having adequate knowledge of this topic will be a great benefit. This article provides you, all the essential information like types, applications, and specifications of hydraulic cylinders.

A hydraulic cylinder is a linear actuator used for creating a mechanical force in a straight line either through pushing or pulling. A tube, a piston and ram, two end caps, and suitable oil seals are the basic components required for hydraulic cylinder construction. The tube will have a finished interior. Hard chrome-plated piston rods are commonly used for avoiding pitting and scoring. Seals and wipers are attached on the end caps for eliminating contaminants and preventing leakage.

Mobile applications such as excavators, dump trucks, loaders, graders, backhoes and dozers use hydraulic cylinders. Other hydraulic cylinder uses are heavy machinery, gym equipment, boats, wheelchair lifts and a lot more. The hydraulic cylinder helps the wheelchair lift to balance the load on it. In the case of heavy machinery, hydraulic cylinders will help to extend the control or usage of equipment.

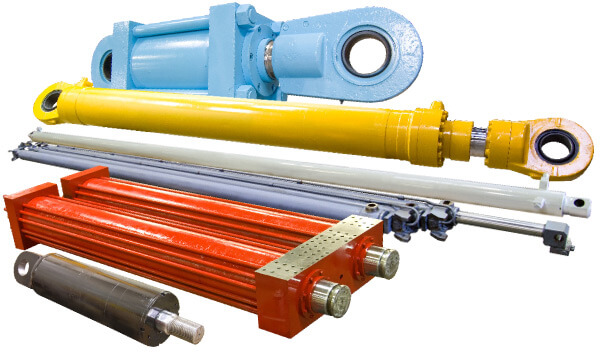

You can find a variety of hydraulic cylinders on the market. The difference in the design of cylinders differs from its application and industry. The common differences include wall thickness of tube or end caps, the methods used for connecting end caps, the material used, the operating pressure, and temperature. Single acting cylinders, double acting cylinders, tie-rod, welded rod, and telescopic are important cylinder types.

The head end port of these cylinders will operate in a single direction. When the fluid gets pumped into the cylinder barrel, it will extend the piston rod. For generating the return operation (convert to non-pressurized state), a load string or any external force is required. Here, on applying energy, the fluid will drain from barrel to the reservoir. A hydraulic jack is an example of a single acting cylinder. Spring-extend and spring-return are the two types of single acting hydraulic cylinder. The spring-extend, single acting cylinders are used for holding work pieces for a long time.  A hydraulic pressure released brake is an example of this type. The commonly used variety of single acting cylinder is spring-return(material handling applications).

In double acting cylinders, both the head and rod ends contain ports for pumping fluids.  These ports will control the flow of fluid and provide movement in both directions. Pumping hydraulic fluid to the rod end will retract the piston rod and pumping fluid to the head end will extend the piston rod.  Most of the raising and lowering devices are applications of this type. The opening and closing drawers of presses and chippers is a good example of double acting cylinders. Differential and synchronous types are the two categories of double acting cylinders.

Most of the industrial and manufacturing applications use tie-rod cylinders. The advantages of the tie-rod cylinder include ease of maintenance, repair, and assembling.  For holding the end caps of tie rod cylinders, threaded steel rods are used. These end caps will prevent fluid leakages. Depending on the applications, it can use 4 to 20 tie rods.

This type of cylinder welds end caps directly to the barrel. So, they are difficult for assembling and disassembling. The compact construction, internal bearing lengths and duty cycle of welded rod cylinders make it suitable for mobile applications.

This is a single or double acting cylinder. Telescopic cylinder contains more than five tubes nested inside each other. These nested tubes are called stages and the diameter of each nested tube will become lesser.
